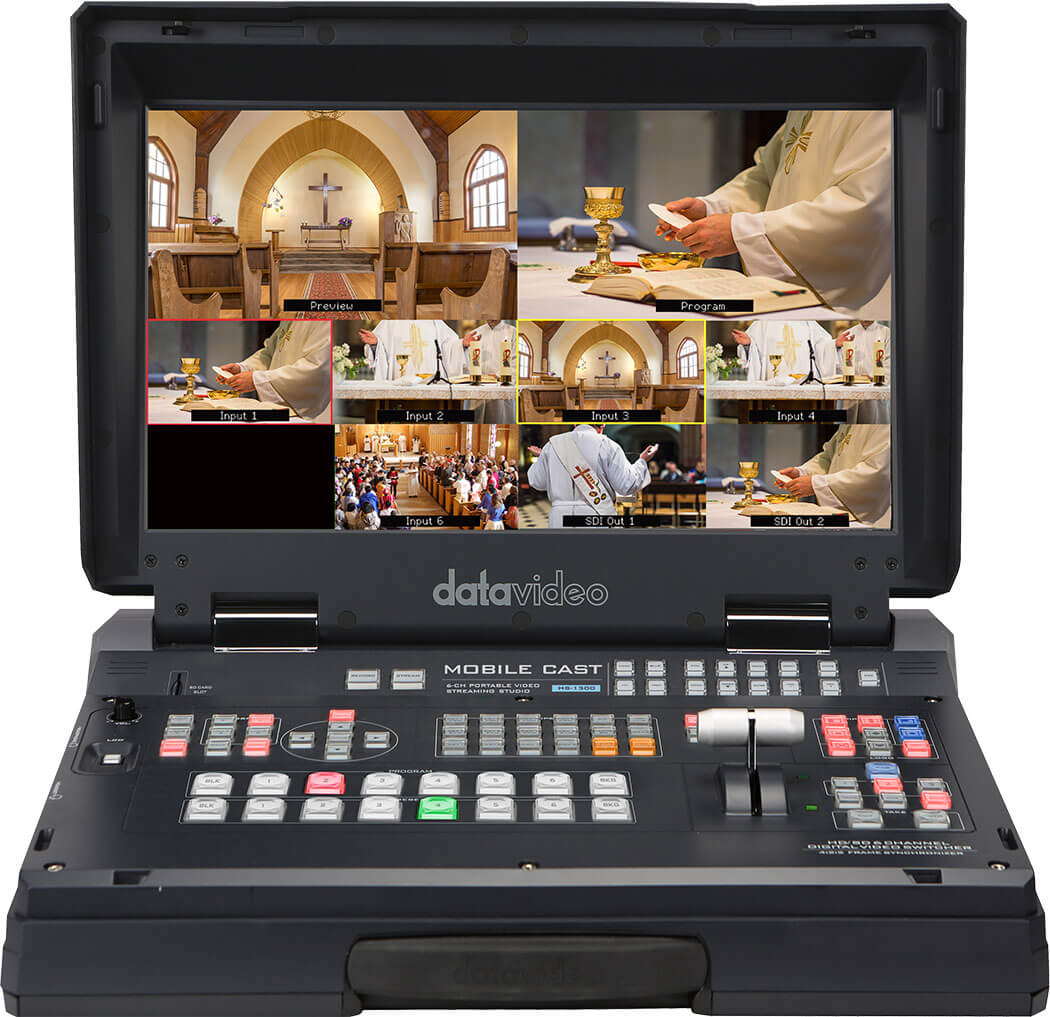

DATAVIDEO MOBILE CAST HS-1300

6-CHANNEL HD PORTABLE VIDEO STREAMING STUDIO

DataVideo Image

Made for mobility. Made for the web.



The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.



DataVideo Image

Compact design suited for medium-sized productions



The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs: ( SDI x 2 + HDMI x 3)




DataVideo Image

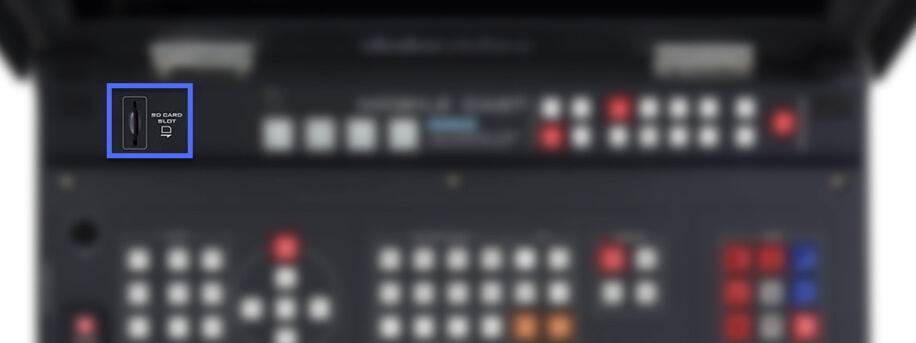

Built-in H.264 recorder for SD cards



The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.



DataVideo Image

Streaming to Facebook Live, YouTube, Twitch, and more



The built-in H.264 encoder allows you to stream your show to virtually any CDN like Facebook, YouTube or Twitch in no time. It also supports different bitrate for recording to SD card and streaming
function



DataVideo Image

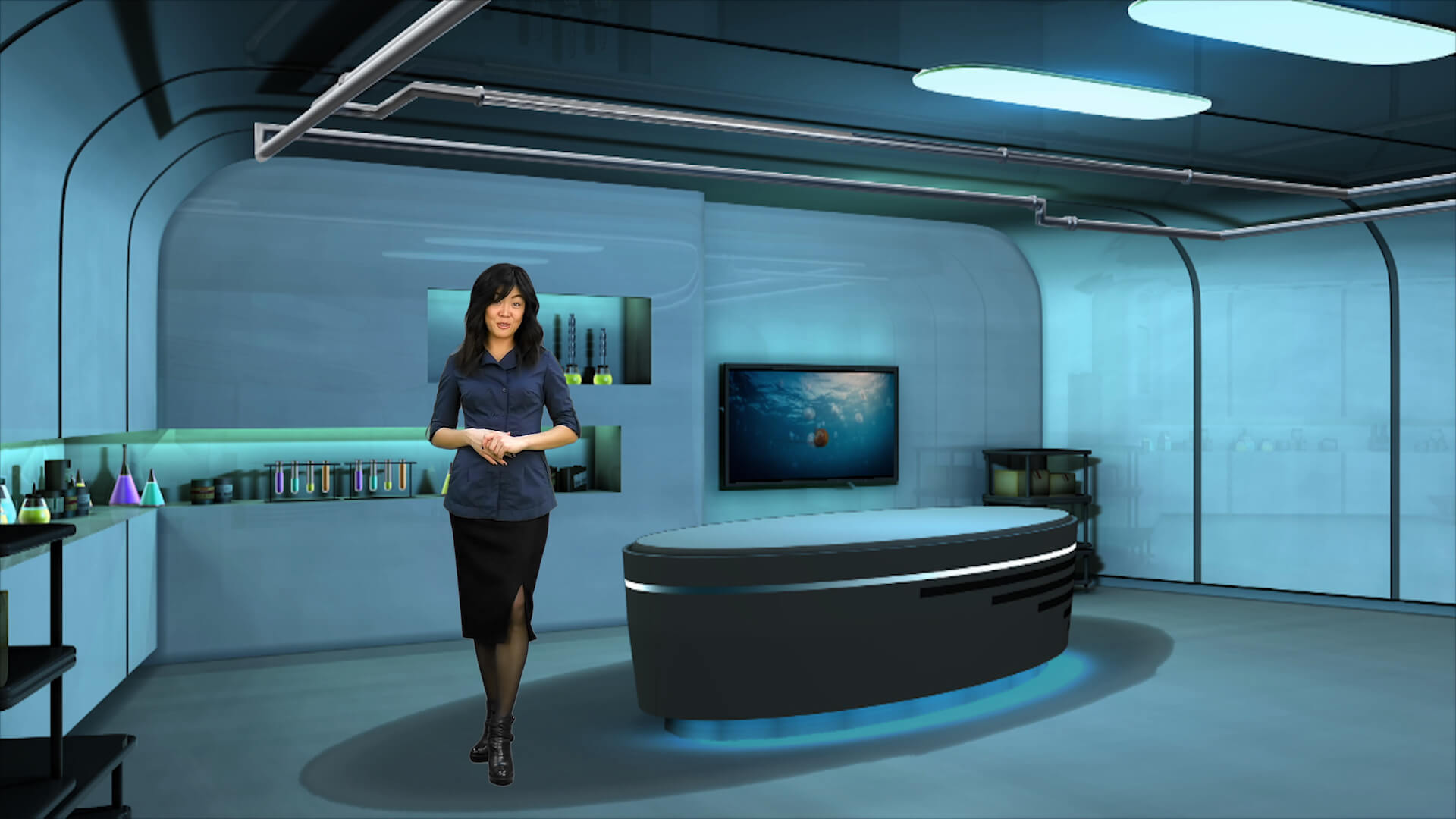

Built-in virtual set backgrounds



Choose between a variety of pre-saved virtual set backgrounds.



DataVideo Image

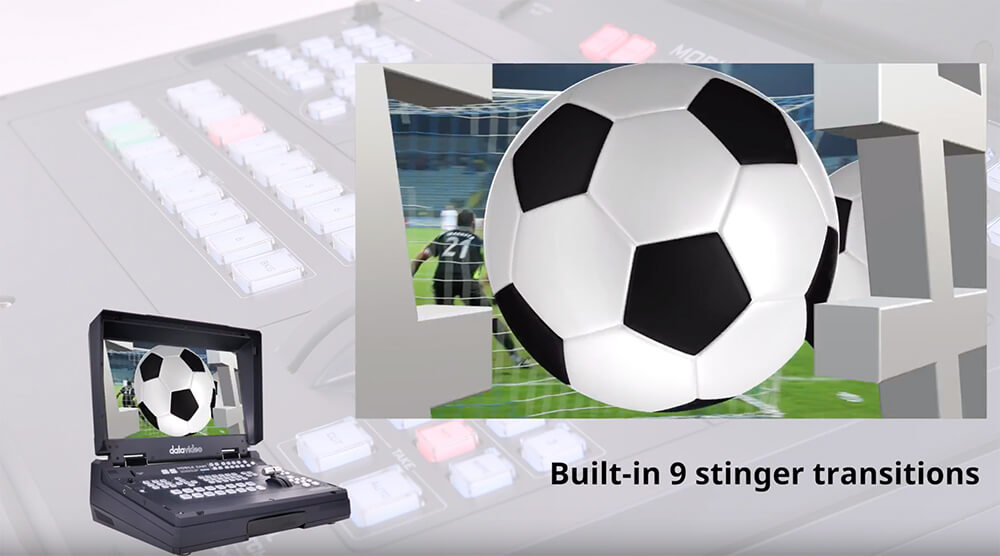

Built-in 9 animations



Choose between a variety of pre-saved animated stinger transitions for your show.



DataVideo Image

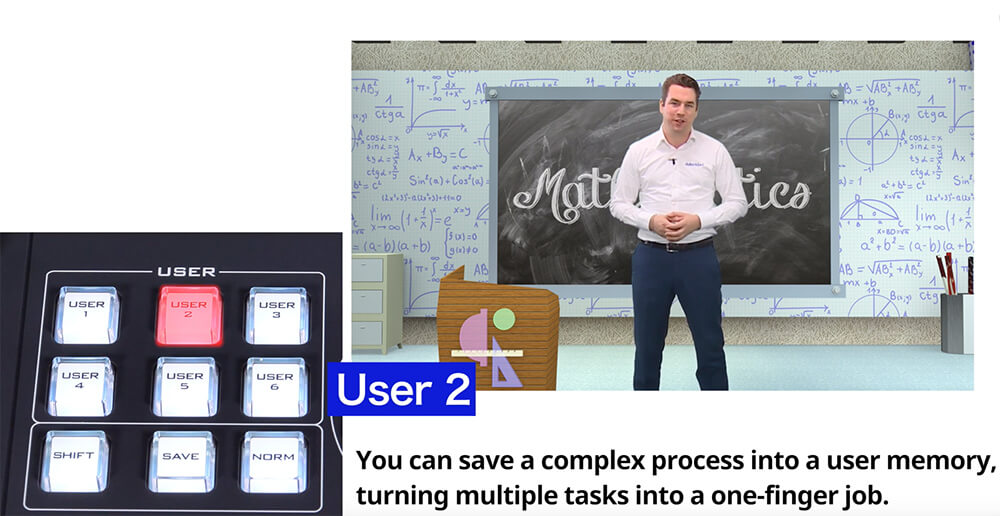

User memories



You can save a complex process into a user memory, turning multiple tasks into a one-finger job.



DataVideo Image

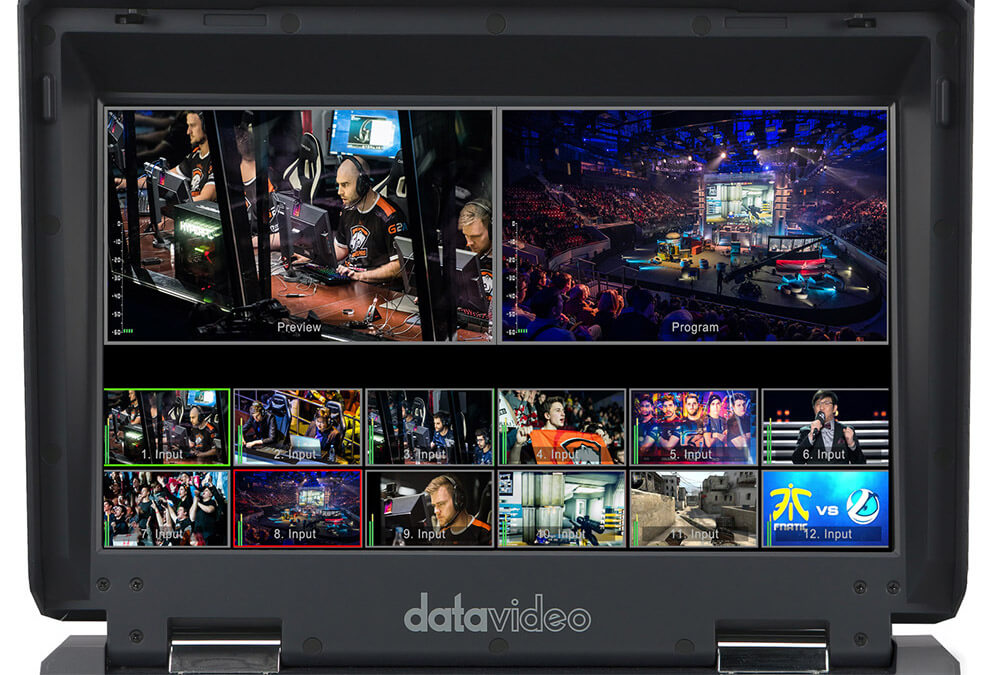

17.3'' LED Backlit Monitor



Built-in Monitor Display. 17.3” HD TFT LED backlit monior with resolution 1600x900 pix.

HS-1300 6-Channel HD Portable Video Streaming Studio
Video Standard

HD

Video Format

1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Input Routable / Crosspoint

All 6, repeatable

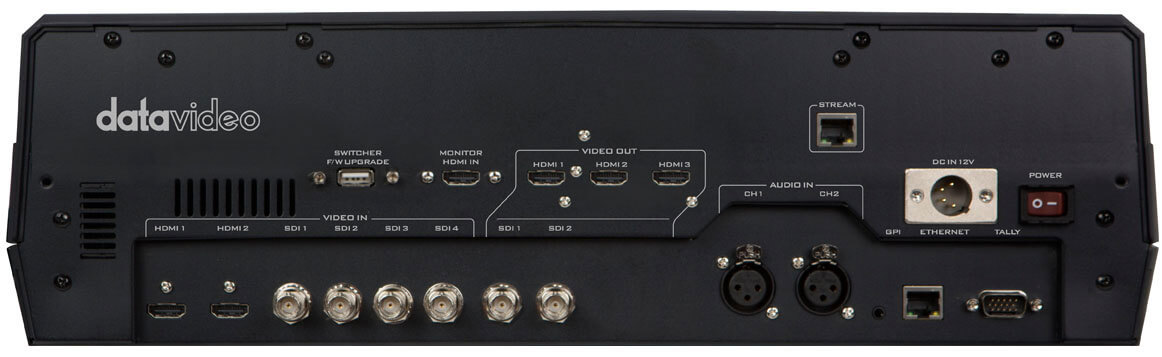

Video Input

4 x HD-SDI
2 x HDMI

Computer Graphic Interface

2 via HDMI

Down-converted Output

N/A

Video Output

3x HDMI

2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview

Audio Input

2x Balanced XLR

Audio Output

1x Stereo headphone

Digital Embedded Audio Support Input

Input 2 channels, Output 2 channels

A+V Switching

Yes

USK

2x USK support Chromakey

DSK

2, support Lumakey & Linear key (Key / Fill)

Picture in Picture

1

Logo Insertion

N/A

Built-in Audio Mixer

N/A

Built-in Monitor Display

17.3” HD TFT LED backlit, 1600x900 pix

Built-in Intercom & Tally

N/A

Streaming Video Encode

H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps

Streaming Audio Encode

AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit

Streaming Protocol

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)

Streaming Control

Web browser UI for configuration and control Socket commands

Recording File System

FAT, exFAT, NTFS

Recording File Format

MP4

Recording Setting Control

Web UI for system configuration and control

Special Features

Streaming encoder and recorder
2 chromakey virtual studio
9 stinger transition and 30 virtual sets included

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

16.3 Lbs (7.4 kg), Reinforce Plastic Case

Power

DC 12V, 5A

Operating Temp. Range

0~40 °C

Options

CB-22H/23H/46/47/60/61/62

What's in the Box
Content

1 x HS-1300 Product
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card

Drive Compatibility

For a list of verified compatible drives, visit the Drive Compatibility Page
